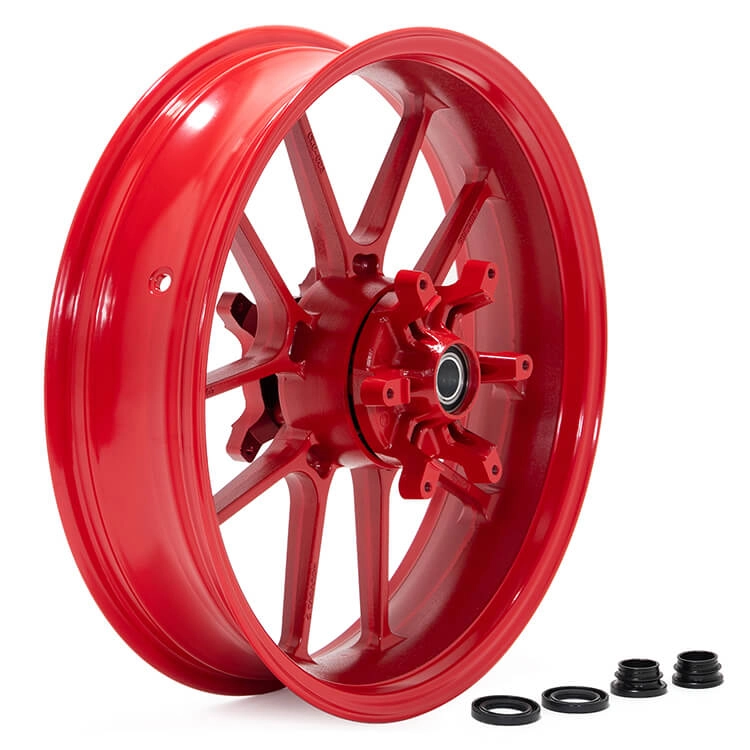

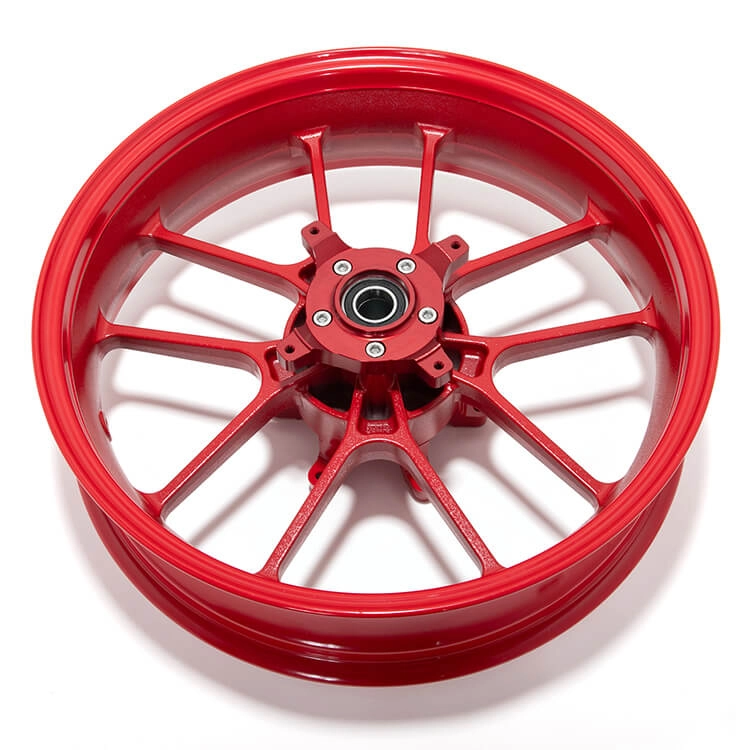

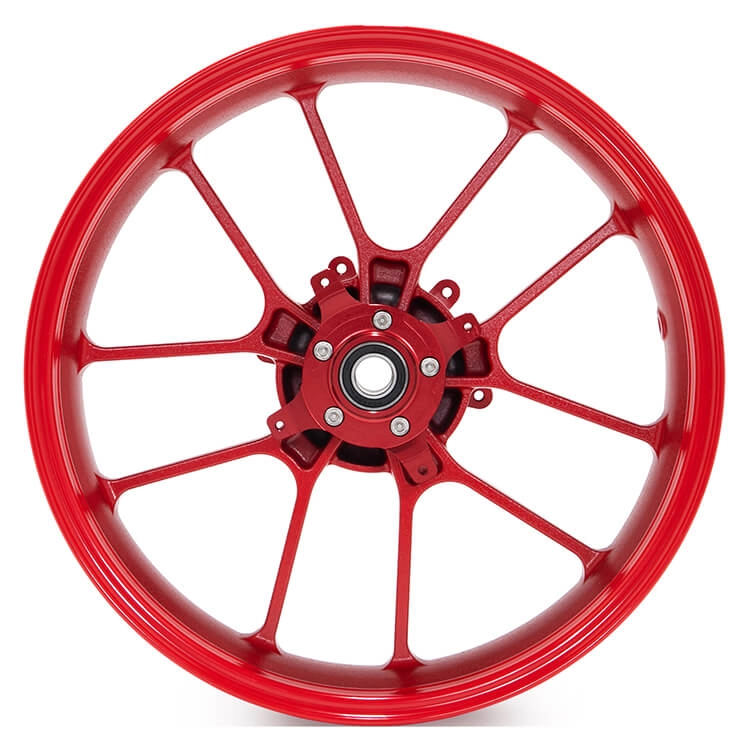

17 Inch Supermoto Wheels Aluminum Tubeless Wheels

  • Aluminum Alloy
  • 17 Inch
  • Black/Red/Orange
  • Spray Paint
  • Supermoto
  • China
  • Carton Package
  • Provided
  • By Sea / Express Delivery / Air Transport
  • 12 Months
  • ISO9001
Availability:
Product Description

Installation Guide:

First, install the purchased skid wheel on the hub according to the corresponding size.

Front-wheel: Bolt the front wheel flange to the drum core, then install it on the brake disc, then put on the oil seal and end sleeve, and finally install the wheel on the car;

Rear-wheel: fix the rear wheel flange on the drum core with bolts, then install the brake disc, the other side is to embed the buffer glue in the drum core, press the sprocket seat, then install the sprocket and put on the oil seal and ends, and finally put the wheels on the car;

Fit For:

BrandModelYearFrontRear
SizeCodeSizeCode
HondaCR 125 / 2502002-200717*3.5"STR-CWH-00417*4.25STR-CWH-005
CRF 250R2004-201317*3.5"STR-CWH-00417*4.25STR-CWH-005
2014-202217*3.5"STR-CWH-00417*4.25STR-CWH-006
CRF 250RX2019-202217*3.5"STR-CWH-00417*4.25STR-CWH-006
CRF 450R2002-201217*3.5"STR-CWH-00417*4.25STR-CWH-005
2013-202217*3.5"STR-CWH-00417*4.25STR-CWH-006
CRF 450RX2017-202217*3.5"STR-CWH-00417*4.25STR-CWH-006
KTM125-500cc2004-202117*3.5"STR-CWM-00217*5.0STR-CWM-003
Gas Gas125-450cc2021-17*3.5"STR-CWM-00217*5.0STR-CWM-003
HusabergALL MODELS2003-201317*3.5"STR-CWM-00217*5.0STR-CWM-003
Husqvarna125-501cc2014-202117*3.5"STR-CWM-00217*5.0STR-CWM-003
