6061 T6 Aluminum
61T 66T 68T 70T 72T 80T
Chrome / Black
CNC Machined + Casting / Forged
Chrome
Harley Davidson
By Sea / Express Delivery / Air Transport
ISO9001

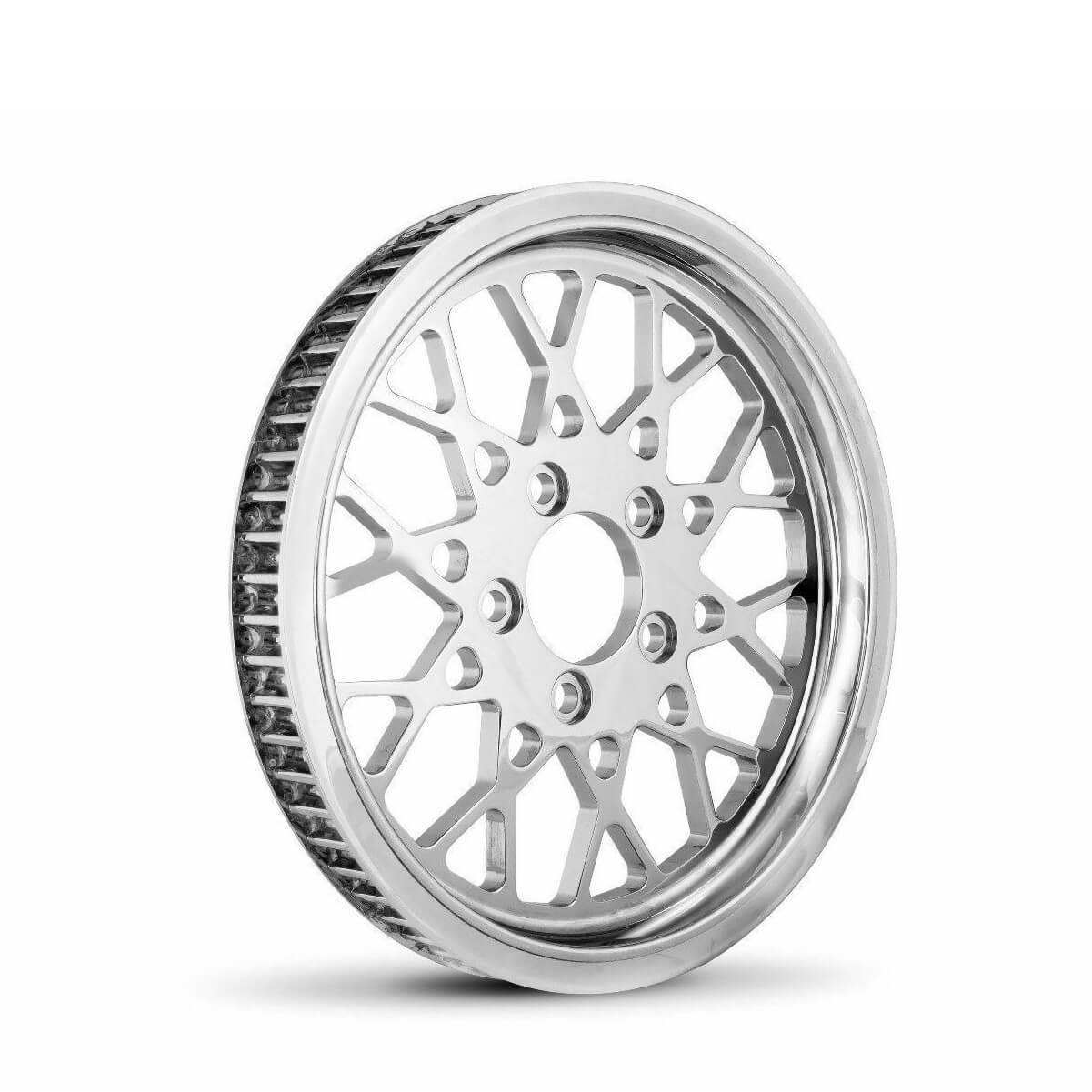

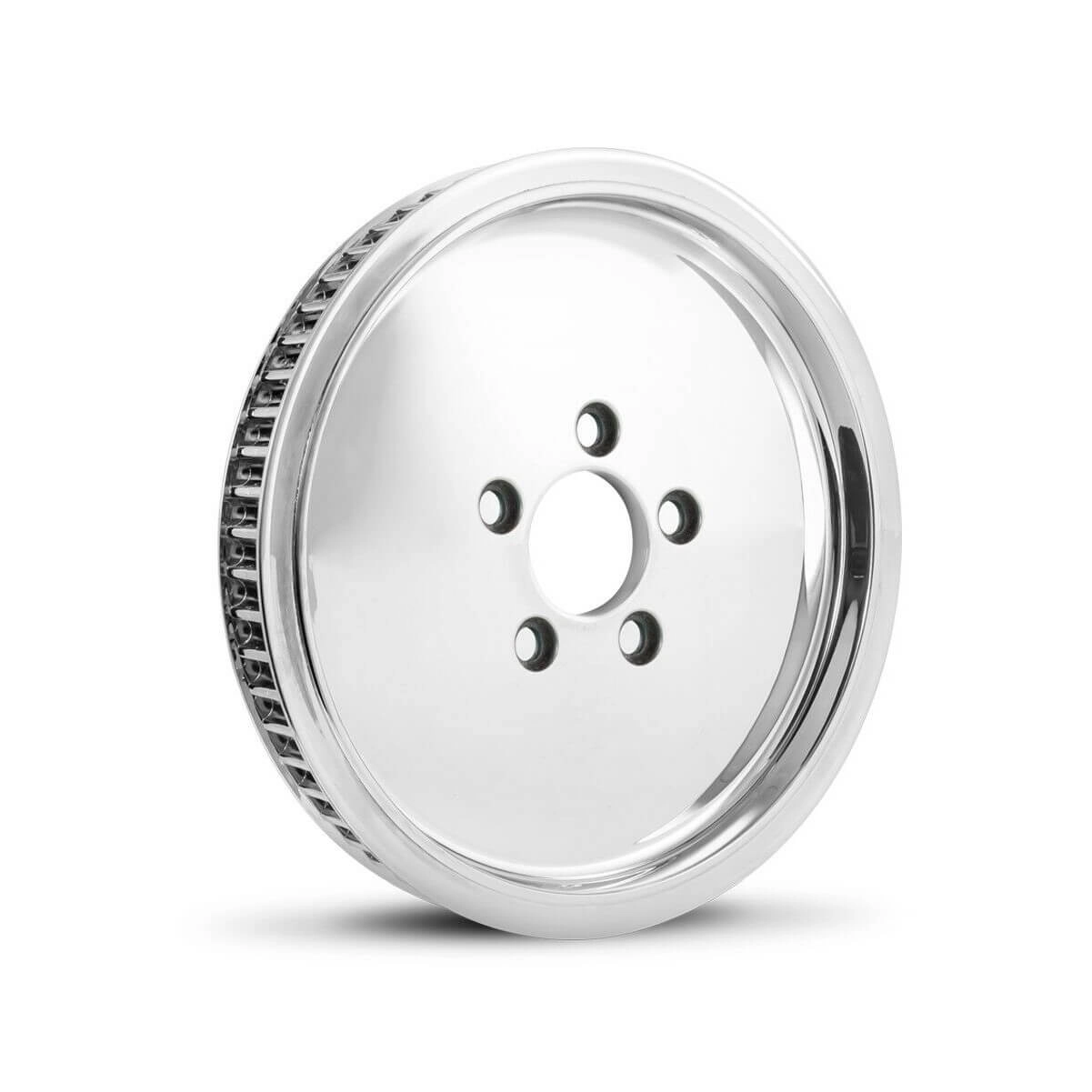

OE: Casting process, fixed shape, dedicated for special vehicles, and the ribs are multi-point stamping installation.
Ours: Forging Pulley: Forging process, surface oxidation, high price, customizable shape, matching flanges can be adapted to different models, and flanges are rolled or extruded in full. (Semi-finished products can be produced according to your needs).
The Casting Pulley, surface spraying or electroplating, low price, can be customized after modeling and can be adapted to different models with flanges. (Semi-finished products can be produced according to your needs).
If you don't like this pattern, we can also customize other patterns for you. If you can provide the corresponding drawings, pictures or samples, that would be the best.
Fit For:
| Harley-Davidson belt, pulley guide | ||||
| Model | Year | Pulley | Belt, width | Belt, tooth |
| Touring, All models | 2000-2003 | 70 tooth | 1.5" | 139 tooth |
| 2004-2006 | 70 tooth | 1.125" | 139 tooth | |
| 2007-2008 | 66 tooth | 1" | 137 tooth | |
| 2009-2019 | 68 tooth | 1" | 140 tooth | |
| Trike | 2009-2019 | 70 tooth | 1.125" | 139 tooth |
| Softail, All models | 2000-2005 | 70 tooth | 1.125" | 135 tooth |
| Softail, FXSTD, FLST/C/F/N/SC | 2006 | 70 tooth | 1.125" | 135 tooth |
| Softail, FXST/B/S/I | 2006 | 70 tooth | 20mm | 135 tooth |
| Softail, FLST, FLS, FXSTD | 2007-2011 | 66 tooth | 1" | 133 tooth |
| Softail, FXST/B/C, FLSTF/B | 2007-2011 | 66 tooth | 20mm | 133 tooth |
| Softail, All models | 2012-2017 | 66 tooth | 24mm | 133 tooth |
| Dyna, All models | 2000-2006 | 70 tooth | 1.125" | 133 tooth |
| 2007-2017 | 66 tooth | 1" | 131 tooth | |
| Sportster, All models | 2000-2003 | 61 tooth | 1.125" | 128 tooth |
| Sportster, XL 883 | 2004-2006 | 68 tooth | 1.125" | 136 tooth |
| Sportster, XL | 2004-2006 | 68 tooth | 1.125" | 137 tooth |
| Sportster, XL 883 | 2007-2010 | 68 tooth | 1" | 136 tooth |
| Sportster, XL | 2007-2010 | 68 tooth | 1" | 137 tooth |
| Sportster, XR1200 | 2010-2012 | 68 tooth | 1" | 137 tooth |
| Sportster, XL | 2011-2013 | 68 tooth | 1" | 137 tooth |
| Sportster, All models | 2014-2020 | 68 tooth | 1" | 137 tooth |
| V-Rod, All models | 2002-2003 | 72 tooth | 1.375" | 150 tooth |
| V-Rod, VRSCA/B/R | 2004-2007 | 72 tooth | 1.375" | 149 tooth |
| V-Rod, VRSCD | 2006-2008 | 72 tooth | 1" | 151 tooth |
| V-Rod, VRSCAW/DX/X/F | 2007-2017 | 72 tooth | 25mm | 151 tooth |
| Street, All models | 2015-2019 | 80 tooth | 25mm | 166 tooth |
