Vespa Forged Wheel Parts List

Views: 85 Author: Wang Publish Time: 2022-06-07 Origin: Ruili

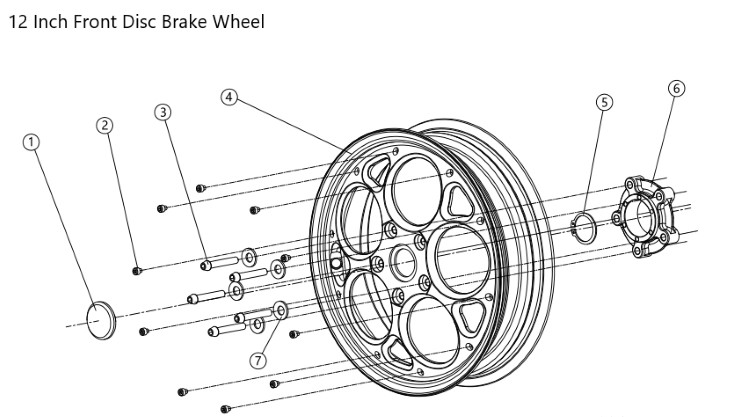

12 Inch Front Wheel - Disc Brake
No.	SKU	Part Name	Specification	Quantity
①	VFW-DC-01	Dust Cover		1
②	VFW-HX001-01	Hexagon socket head cap screws	M5x5（304）	10
③	VFW-DC-03	Hexagon socket head cap screws	M8x50（304）	5
④	VFW-HX001	Front Wheel Body 12 Inch	001Pattern	1
⑤	VFW-DC-02	Shaft circlip	Φ35（Id:32.2，Th:1.5）	1
⑥	VFW-DC-05	Flange	Forged	1
⑦	VFW-DC-04	Flat Gasket	M8	5

front wheel - disc brake

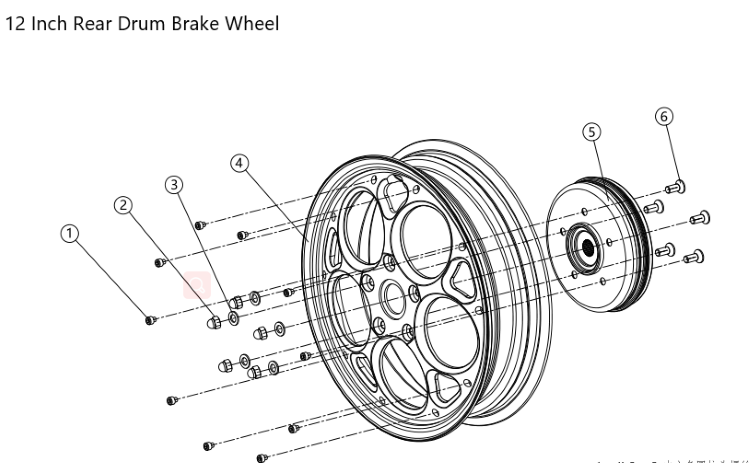

12 Inch Rear Wheel - Drum Brake
No.	SKU	Part Name	Specification	Quantity
①	VFW-HX001-01	Hexagon socket head cap screws	M5x5（304）	10
②	VFW-DM-01	Cap Nut	M8（304）	5
③	VFW-DM-02	Flat Gasket	M8（8.6161.4）（304）	5
④	VFW-HX001	Rear Wheel Body 12 Inch	001Pattern	1
⑤	VFW-DM-03	Flange Drum Brake	Casting	1
⑥	VFW-DM-04	Countersunk Head Socket Screws	M8x20（304）	5

rear wheel-drum brake

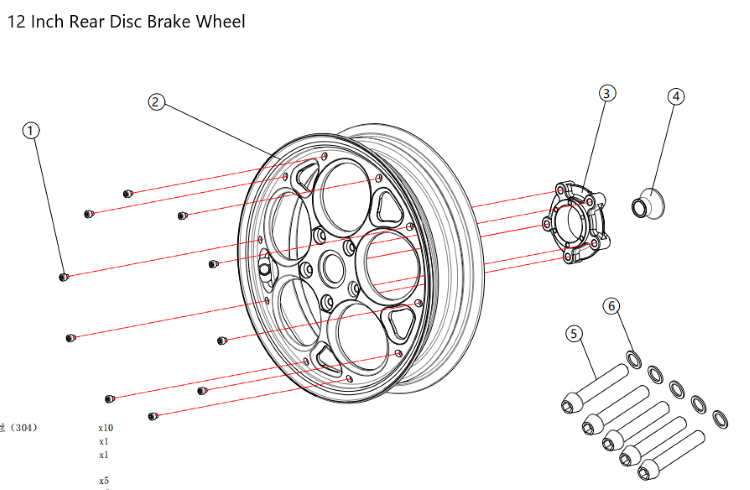

12 Inch Rear Wheel - Disc Brake
No.	SKU	Part Name	Specification	Quantity
①	VFW-HX001-01	Hexagon socket head cap screws	M5x5（304）	10
②	VFW-HX001	Rear Wheel Body 12 Inch	001Pattern	1
③	VFW-DC-05	Flange	Forged	1
④	VFW-DC-06	Rear Brake Disc-End Sleeve	Customized Part	1
⑤	VFW-DC-03	Hexagon socket head cap screws	M8x50（304）	5
⑥	VFW-DC-04	Flat Gasket	M8	5

rear wheel-disc brake

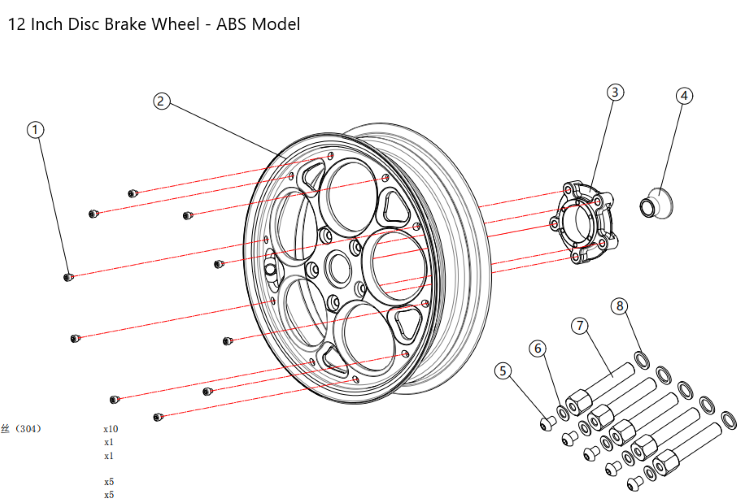

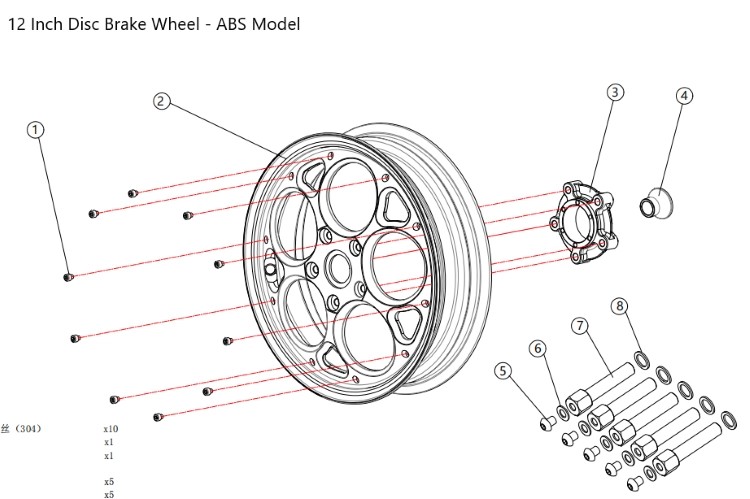

12 Inch Rear Wheel - Disc Brake-ABS
No.	SKU	Part Name	Specification	Quantity
①	VFW-HX001-01	Hexagon socket head cap screws	M5x5（304）	10
②	VFW-HX001	Rear Wheel Body 12 Inch	001Pattern	1
③	VFW-DC-05	Flange	Forged	1
④	VFW-DC-06	Rear Brake Disc-End Sleeve	Customized Part	1
⑤	VFW-DC-07	Head Socket Cap Screws	M5x6	5
⑥	VFW-DC-08	Flat Gasket	M5	5
⑦	VFW-DC-09	Customized Hexagon Screws	M8	5
⑧	VFW-DC-10	Large Gasket	M8	5

rear wheel-drum brake-ABS
