3-Axis CNC Machining

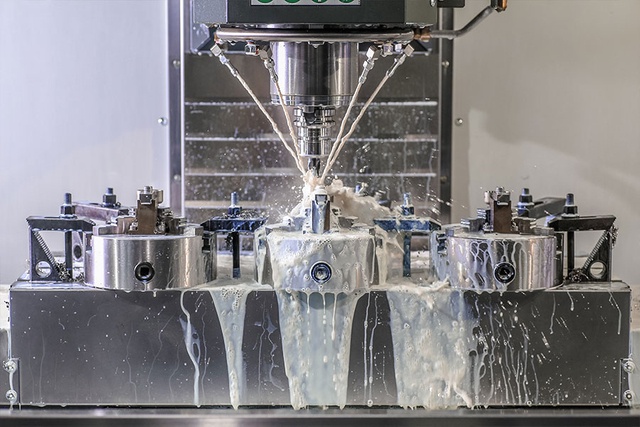

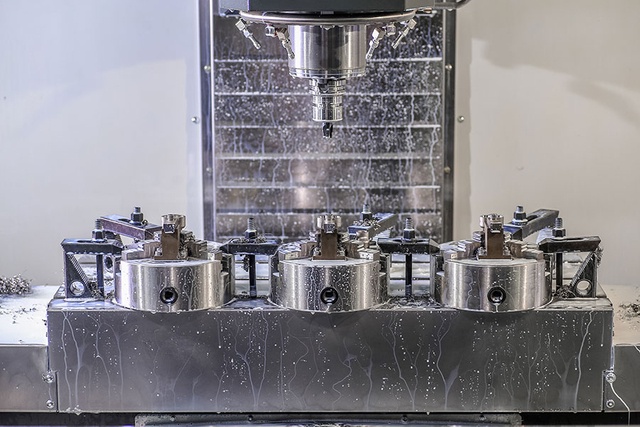

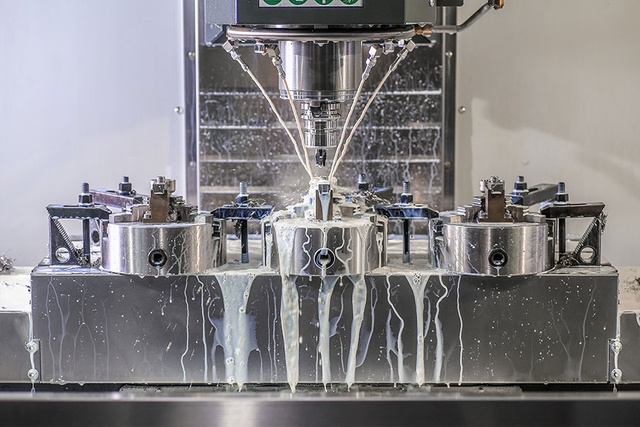

Haas 50-taper VFs are workhorses, well suited to high material removal rates, no matter what kind of cut you’re taking. The standard 7500-rpm 50-taper spindle has 30 hp, and the 2-speed gearbox delivers 450 ft-lb of torque at 500 rpm.

VF-2SS Technical Parameters

ITEM UNIT VF-2SS
Table size mm 914*356
Stroke X mm 762
Y mm 406
Z mm 508
T-groove numbers mm 3-15×125
Spindle nose to worktable distance mm 170-620
Spindle center to fuselage distance mm 480
Spindle speed rpm 50-10000
Taper of spindle # BT-40
Spindle Power kw 5.5
X-axis Fast moving rate mm/min 60000
Y-Axis Quick Move rate mm/min 60000
Z-axis Fast move rate mm/min 60000
Cutting rate mm/min 1-10000
Three-axis motor power kw 1.5/1.5/3.0
Tool weight Kg 8
Tool length mm 300
Maximum diameter mm 78/120
Water Tank Capacity L 150
Air pressure demand Kg/cm² 6
Total power consumption kw 15
Positioning accuracy mm ±0.003/300
Repeat Precision mm ±0.003
Max weight Kg 300
Mechanical weight Kg 3500
T-groove number of worktable-dimensions mm 1900×2510×2480
