What is 5-Axis Machining?

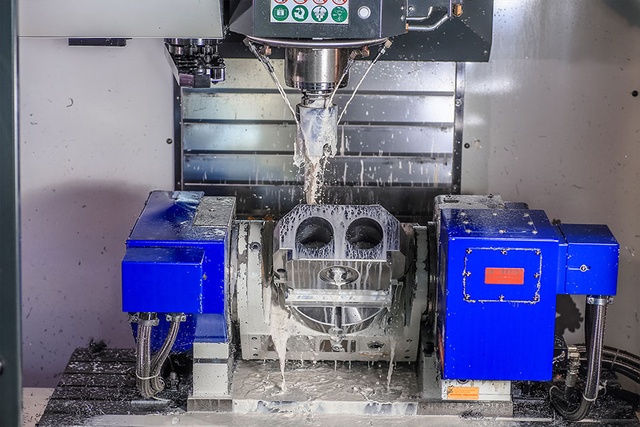

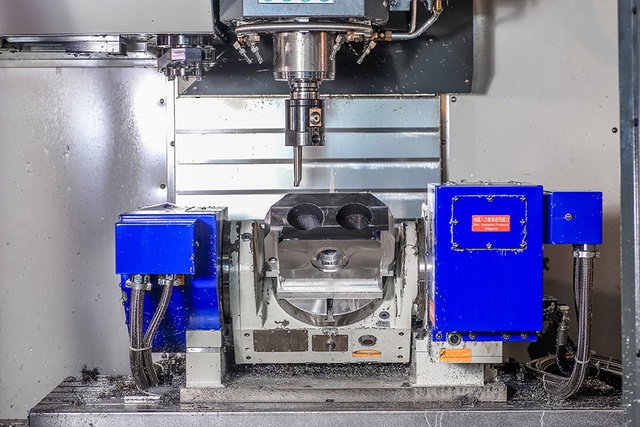

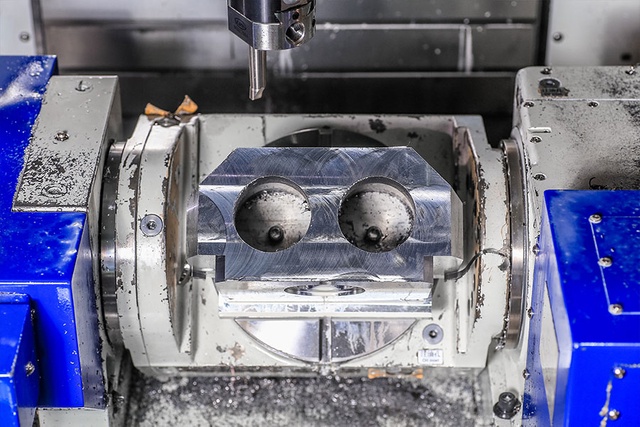

5-axis machining provides infinite possibilities as to the part sizes and shapes you can effectively process. The term “5-axis” refers to the number of directions in which the cutting tool can move. On a 5-axis machining center, the cutting tool moves across the X, Y and Z linear axes as well as rotates on the A and B axes to approach the workpiece from any direction. In other words, you can process five sides of a part in a single setup.
5-AXIS MACHINING BENEFITS
Machine complex shapes in a single setup for increased productivity
Save time and money with less fixture preparation
Boost throughput and cash flow, while shortening lead times
Higher part accuracy because the workpiece does not move across multiple workstations
Ability to use shorter cutting tools for higher cutting speeds and less tool vibrations
Achieve superior surface finishes and overall better part quality
Why Choose 5 Axis Milling?
5 axis milling allows for the machining of incredibly complex parts in a fraction of the time. In fact, this precision engineering process can often machine whole parts in a single set-up, reducing lead time and increasing productivity to the financial benefit of our clients.

In addition to efficiency, 5 axis machining also offers a superior level of accuracy in comparison to machines with fewer axes. A CNC ensures 5 axis machining operations always produce precision results, which makes this method popular for industries where quality is critical.

Another reason why 5 axis CNC is an industry-leading precision engineering process is that the cutting tool and table can be tilted to always maintain the optimum cutting position and a constant chip load. This capability serves to avoid collision with the tool holder and offer better access to part geometry, improving cycle time as well as tool life.
5 Axis CNC Applications
The practical applications of 5 axis CNC work are endless, including areas as diverse as manufacturing and art/design. Ruili Precision use 5 axis machining to flexibly and creatively engineer parts for a range of industries, with our areas of expertise including:

Aerospace Engineering
Medical Manufacturing
Marine and Oil/Gas Engineering
Ministry of Defence
5-AXIS Technical Parameters
ITEM Unit VF-3SS
Table Size mm 914*356
Stroke X mm 762
Y mm 406
Z mm 508
Rotating angular ° ±120
Rotating diameter ° 260
T-groove numbers mm 3-15×125
Spindle nose to worktable distance mm 170-620
Spindle center to fuselage end distance mm 480
Spindle speed rpm 50-10000
Taper of spindle # BT-40
Spindle Power kw 5.5
X-axis Fast moving rate mm/min 60000
Y-Axis Quick Move rate mm/min 60000
Z-axis Fast move rate mm/min 60000
Cutting rate mm/min 1-10000
Three-axis motor power kw 1.5/1.5/3.0
Tool weight Kg 8
Tool length mm 300
Maximum diameter mm 78/120
Water Tank Capacity Air pressure demand L 150
T-groove number of worktable-dimensions Kg/cm² 6
